View→Overview window

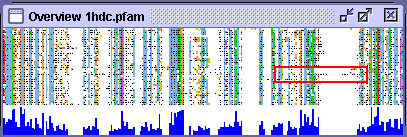

Select the overview window menu item to get a navigable image of the whole alignment.

The red box indicates the currently viewed region of the alignment, this may be moved by clicking and dragging with the mouse.

Click anywhere else in the overview to centre the view on that position

Hiding hidden regions in the overview

Hidden sequences and columns are by default shown as dark-grey rows and columns in the overview. Hidden regions can also be omitted entirely (to make the Overview 'WYSIWIG') by Right-clicking (or CMD-Clicking) to open the overview's popup menu.

The option to include/exclude hidden regions in the overview was introduced in Jalview 2.10.2.
